Web and Strip Guiding

Midwest Integration & Automation offers the Edge Controller as a fully flexible edge guiding solution for both retrofits and new installations. We can design new systems, service existing equipment and upgrade obsolete guiding systems.

Web and Strip Guiding Controllers

Edge Controller for Web and Strip Guiding

The EDGE controller offers close loop control for electro-mechanical & hydraulic guiding application

HMI Setup

Easy to set-up via HMI screens
Easy for operators to control via touch screen

Controllers

Controller for Edge Guiding, electro-mechanical and hydraulic
Connectivity with all Industrial Networks
Wireless connectivity

Actuators

High Thrust Actuator

Brushless DC Servo
On board drive included
1,000 to 6,500 lbs. of thrust
Absolute encoder, no homing reqd.

Sensors

We can upgrade your controller and actuator and re-use your sensor.
We can upgrade your sensor to current technology.

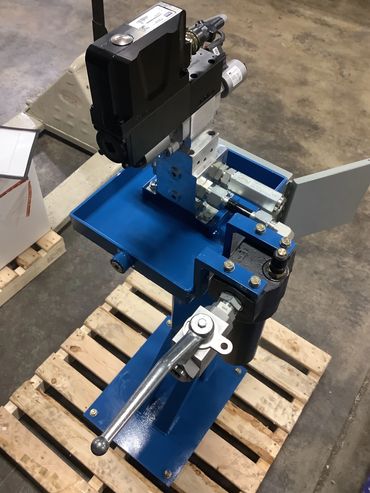

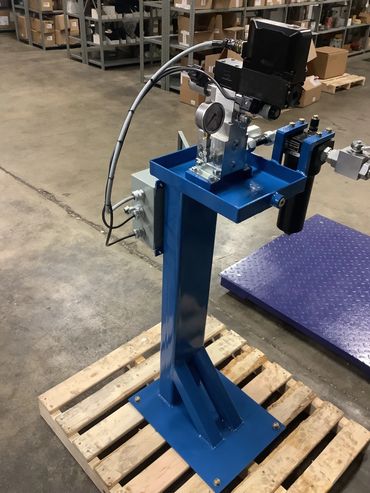

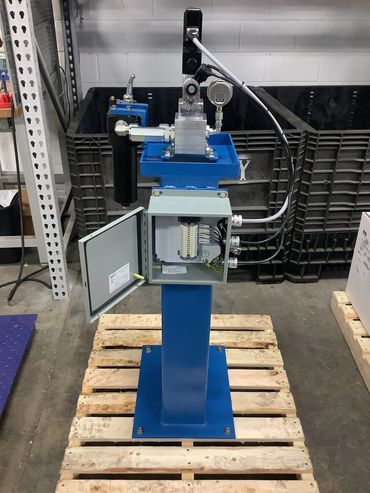

Hydraulic Valve Stands

Datasheet

Download PDF

Downloads

EDGE Controller Datasheet (pdf)Download

EDGE High Thrust Actuators (pdf)Download

EDGE Low Thrust Actuators (pdf)Download

EDGE Service Rates (pdf)Download

Upgrades and Retrofits (pdf)Download

Example Valve Stand Drawing (pdf)Download
